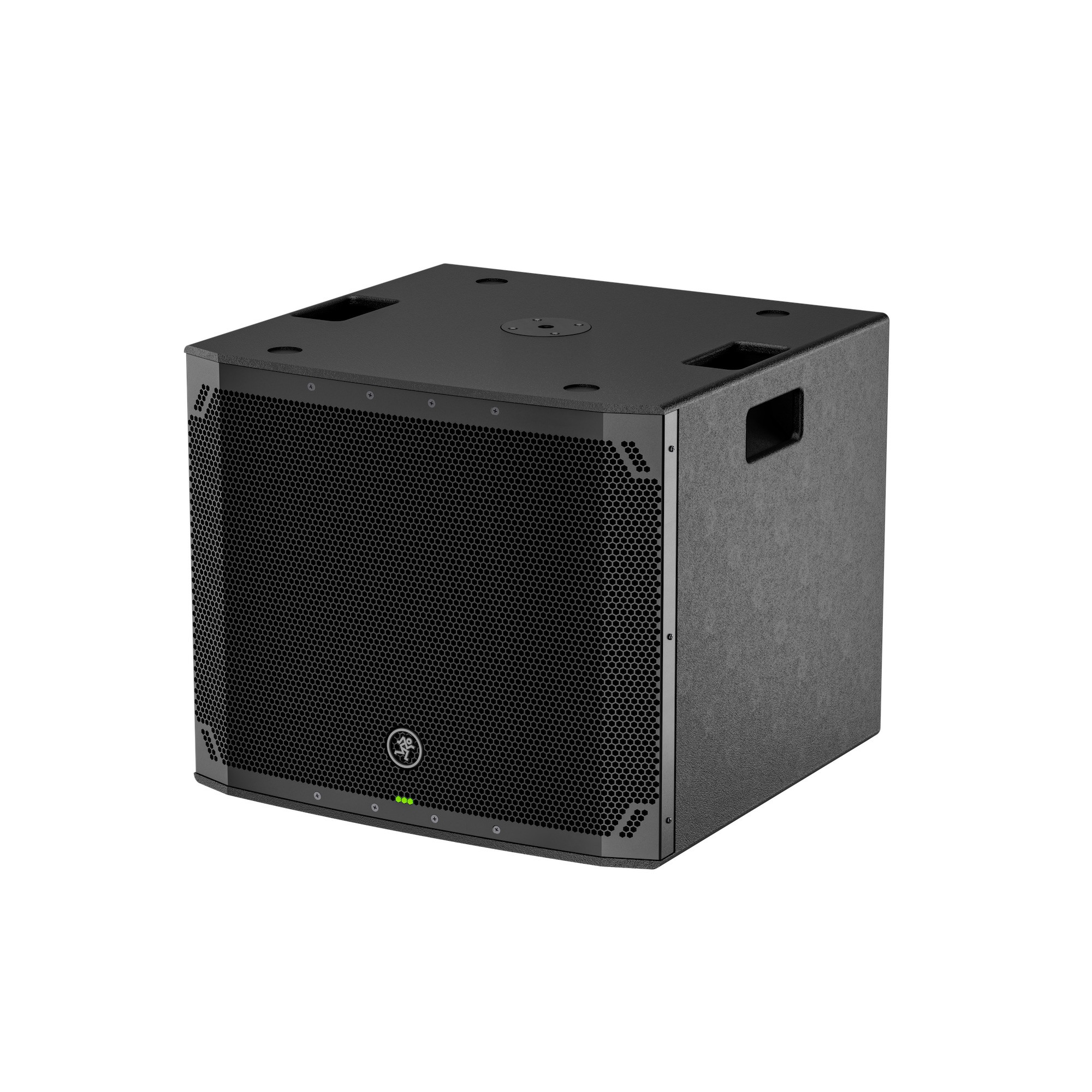

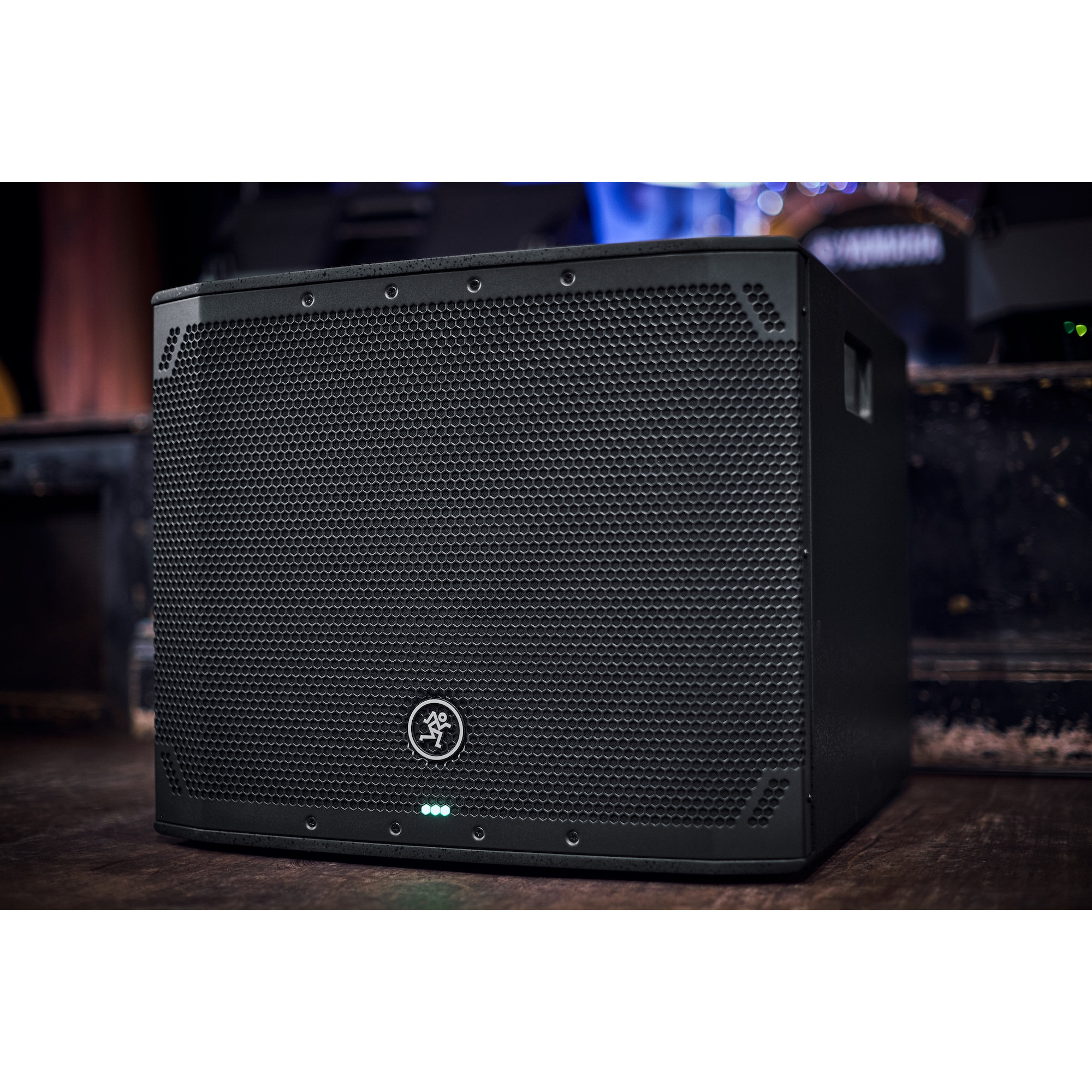

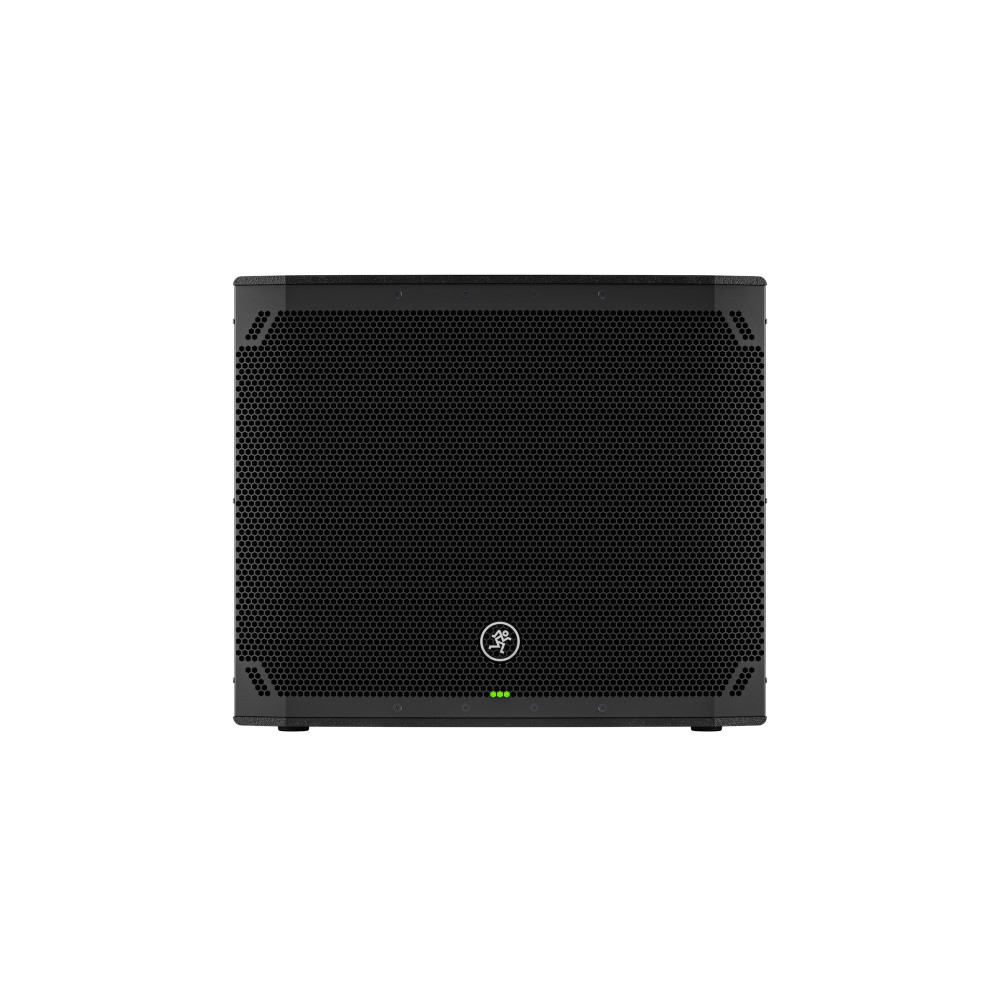

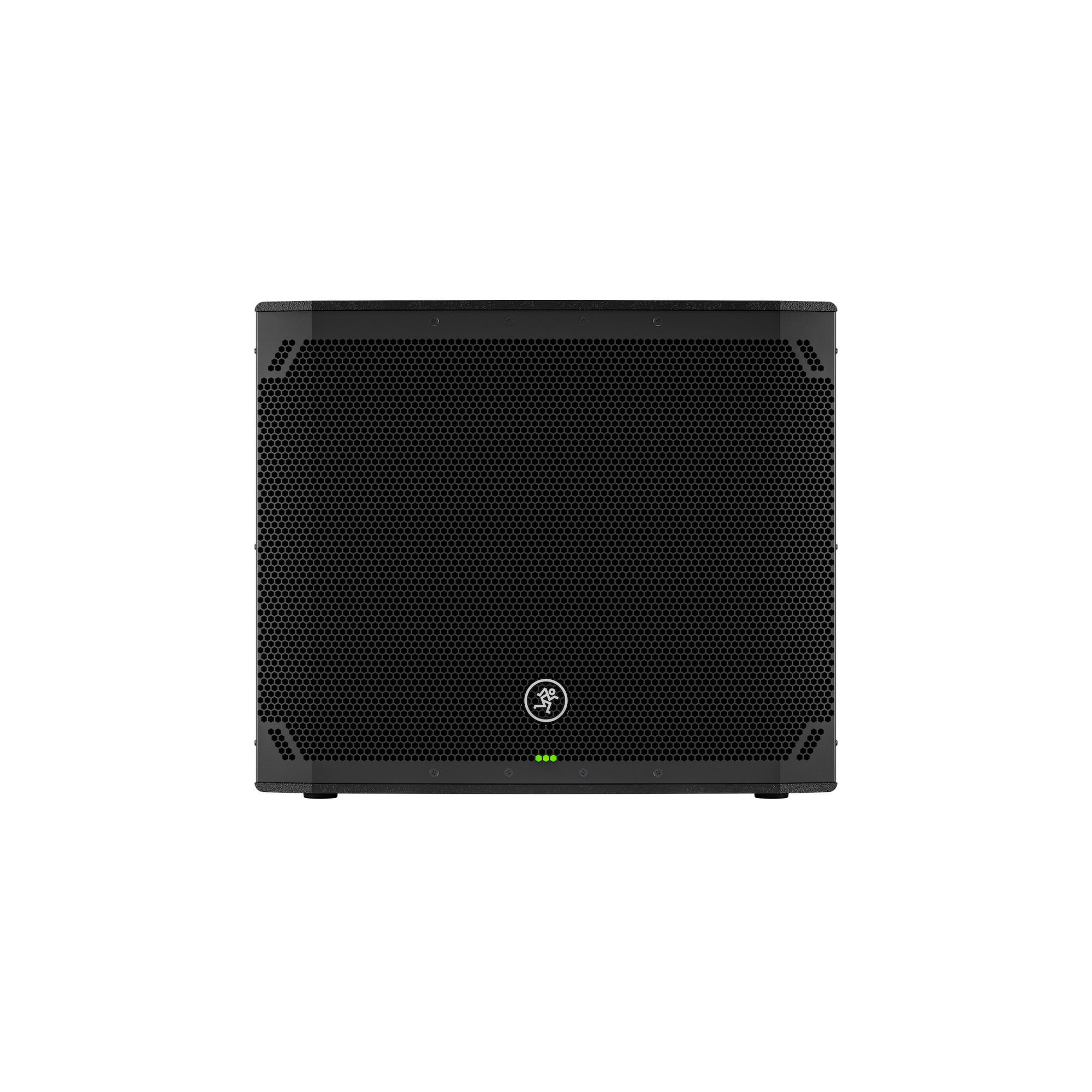

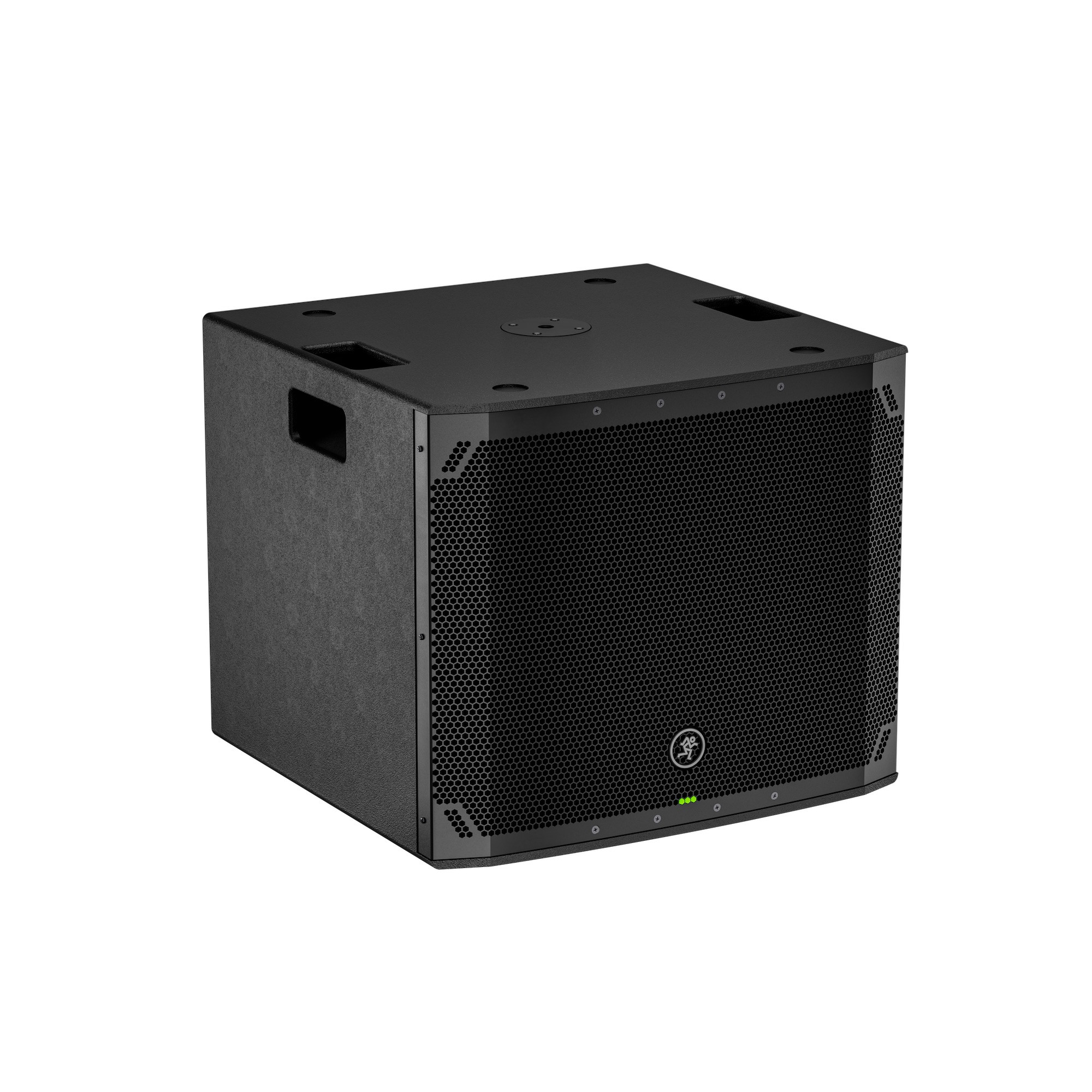

Thump18Sv4
18" Professional Powered Subwoofer

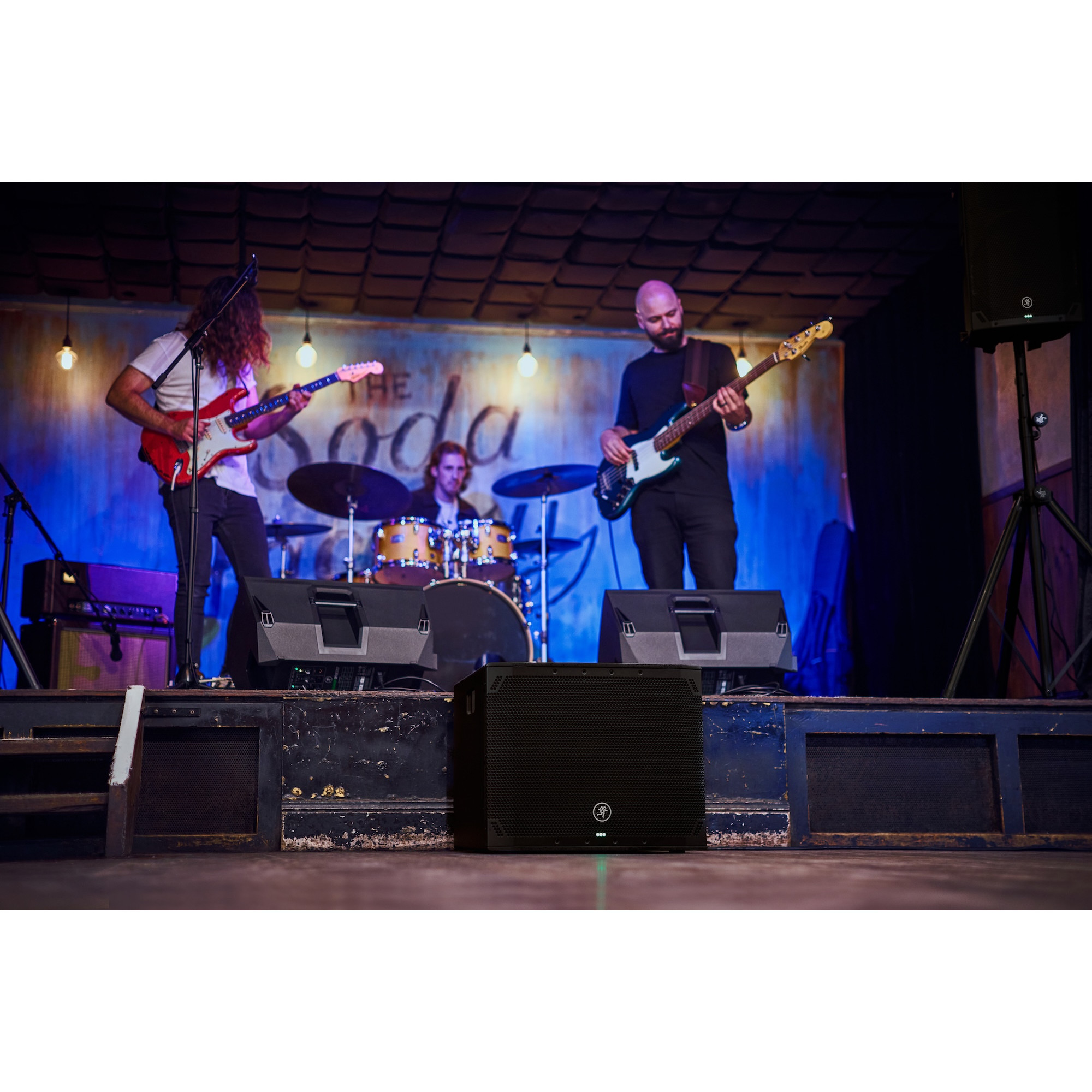

Craving some extra oomph for your PA system? You need a subwoofer. Thump18Sv4 shakes the floorboards with massive bass that gets people on their feet, for moments that leave a lasting impression. Connect loudspeakers. Dial in the perfect low end. Feel the difference of a professional subwoofer that brings music alive with complex basslines and punchy kicks.
Complete Your Thump System With a True Workhorse
Thump18Sv4 combines our 1400W Class-D active subwoofer amplifier with a 18" high-performance woofer, for massive 132 dB maximum SPL and 25 Hz low frequency performance.
1400W Class-D Amp
Ultra-reliable, consistent performance and massive 132 dB SPL volume.
18” Woofer
High-performance driver reaches floor-shaking 25 Hz low frequency.
Built Like a (Lightweight) Tank
Rugged enough to handle any gig but lightweight with handles for easy loading.
Tailor the Bass to Your Loudspeakers With High Pass Modes
This 18 inch subwoofer is the perfect match for Thumpv4 loudspeakers (or any PA speakers) with selectable high pass modes, plus a “variable” mode for setting the crossover yourself.
Thumpv4 Overview
Mackie pulled from decades of experience at the top of the audio industry to create Thumpv4 loudspeakers and subwoofers, pushing Thump Series to a new level of professional excellence. Learn more about how Thumpv4 delivers perfect sound every time, in every application.

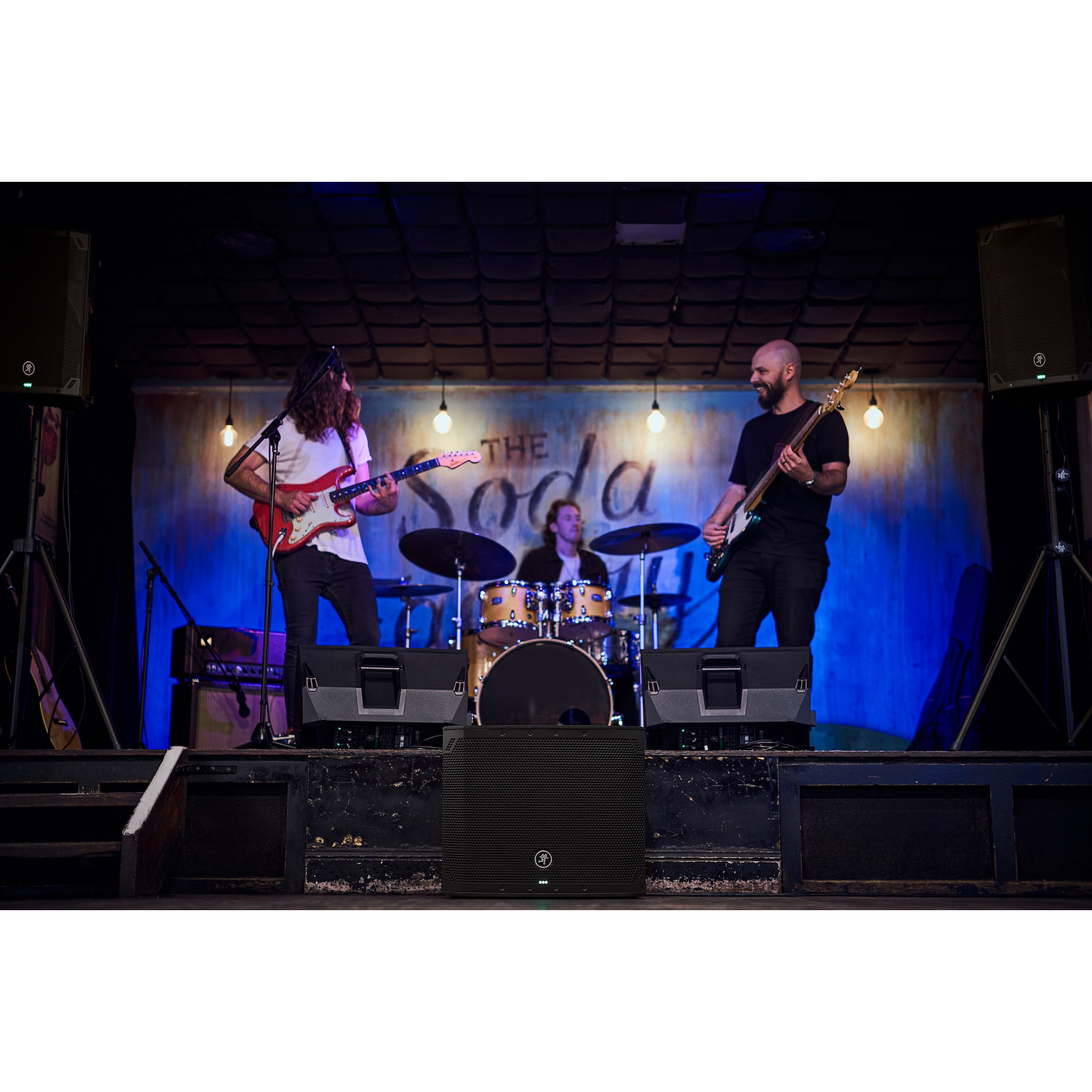

Build an All-in-One System

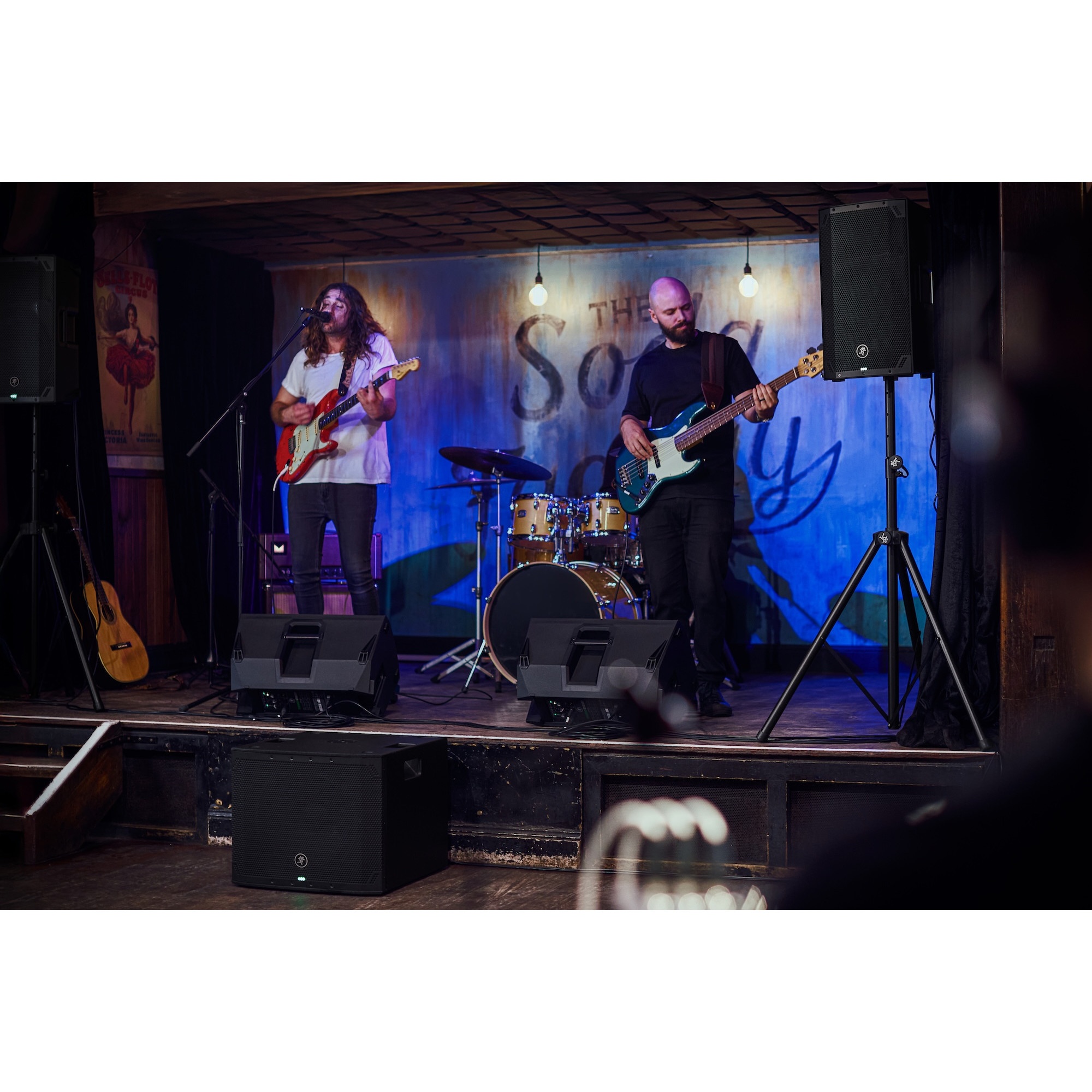

Stack your pole-mountable Thump loudspeaker above Thump18Sv4 using the dedicated Mackie SPM400 speaker pole (sold separately) to create an all-in-one powerhouse PA system, projecting sound across the entire area while keeping floor space clear for getting down.
Product Features
A True Workhorse for Gigging Professionals
- 1400W Class-D amplifier for 132 dB maximum SPL
- 18" high-performance woofer for 25 Hz low frequency
- Built-Like-A-Tank to conquer every gig while lightweight with built-in handles for easy loading
Tailor the Bass to Your Loudspeakers With High Pass Modes
- Connect loudspeakers to high-pass outputs and select from four modes
- All modes include 1.4 ms alignment delay
- Thump 12: Thump12v4 loudspeakers (140 Hz crossover)
- Thump 15: Thump15v4 loudspeakers (110 Hz crossover)
- Thump GO: Thump GO loudspeakers (150 Hz crossover)
- Variable: Set crossover manually to match any loudspeakers

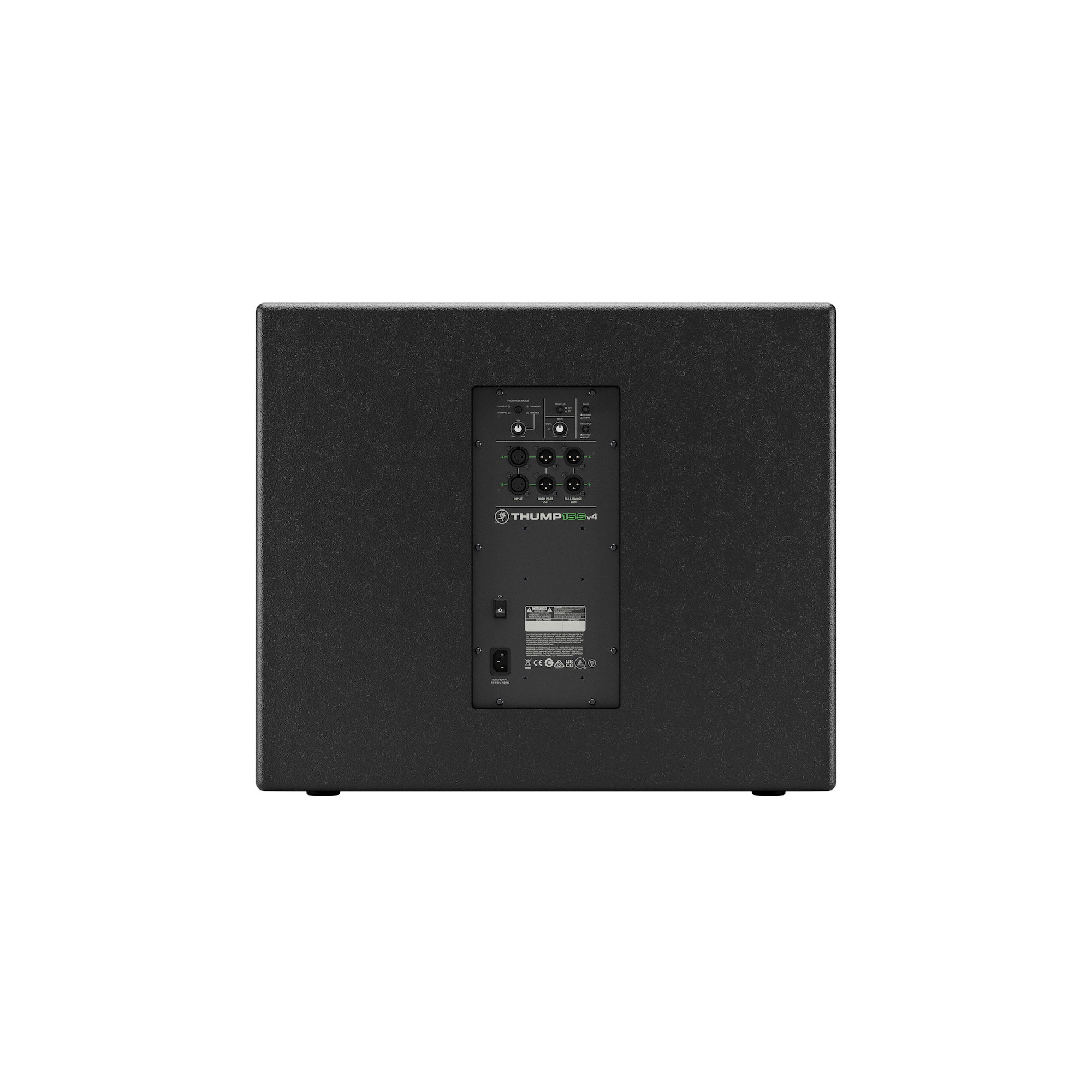

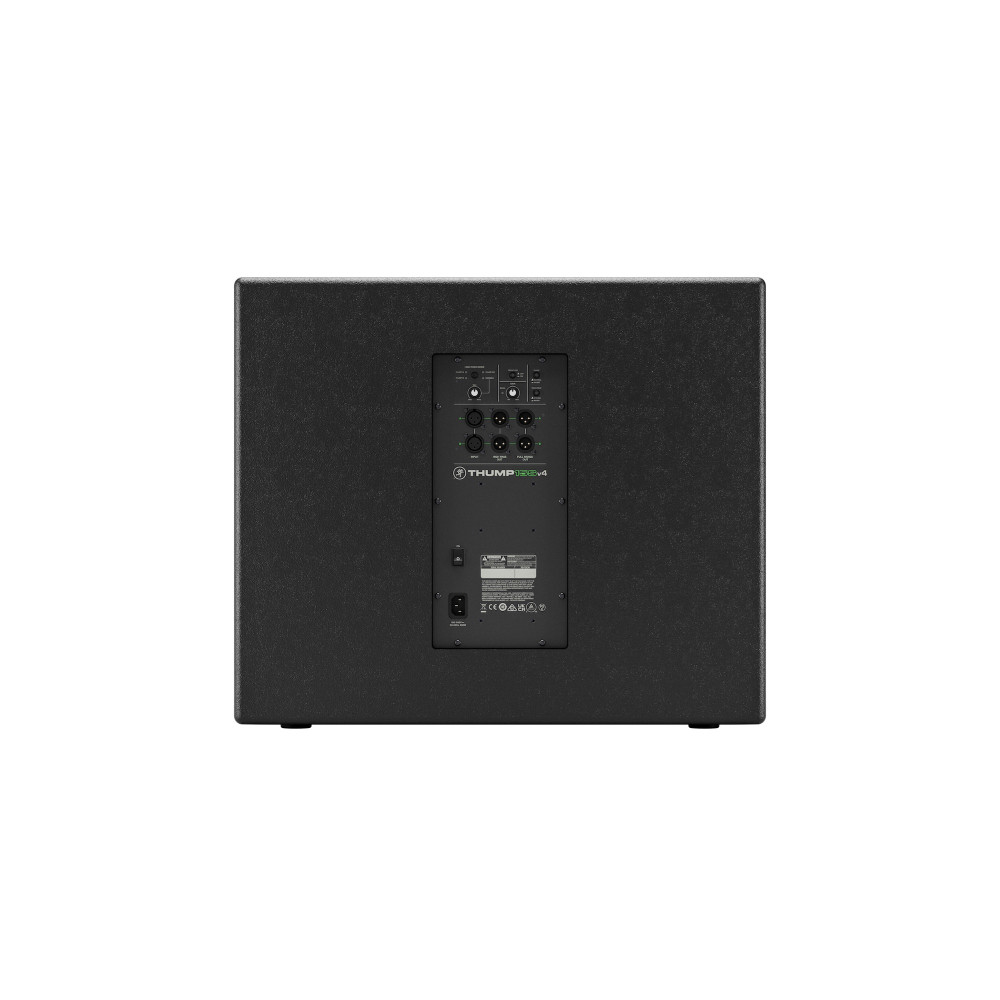

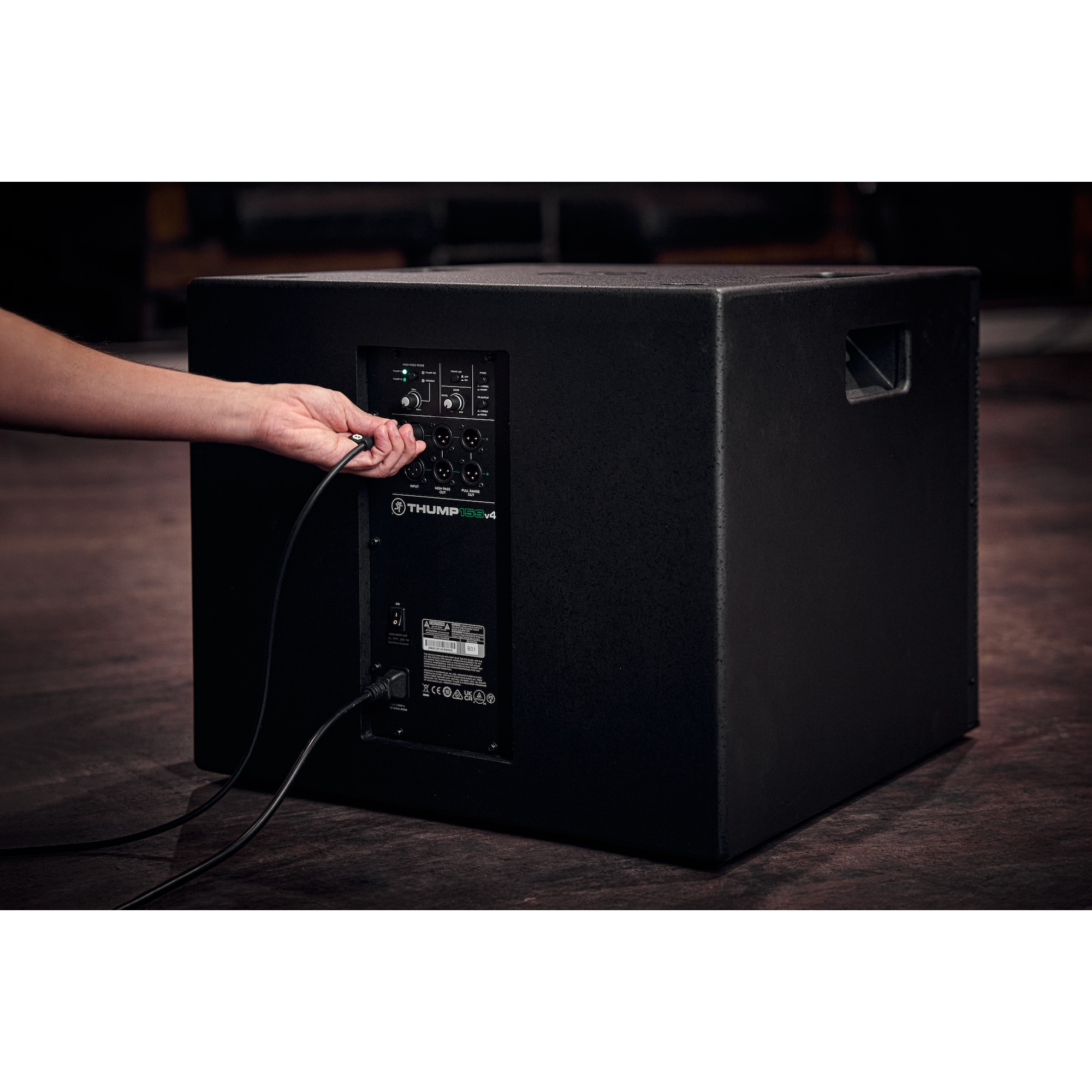

Connect to Versatile Inputs and Outputs

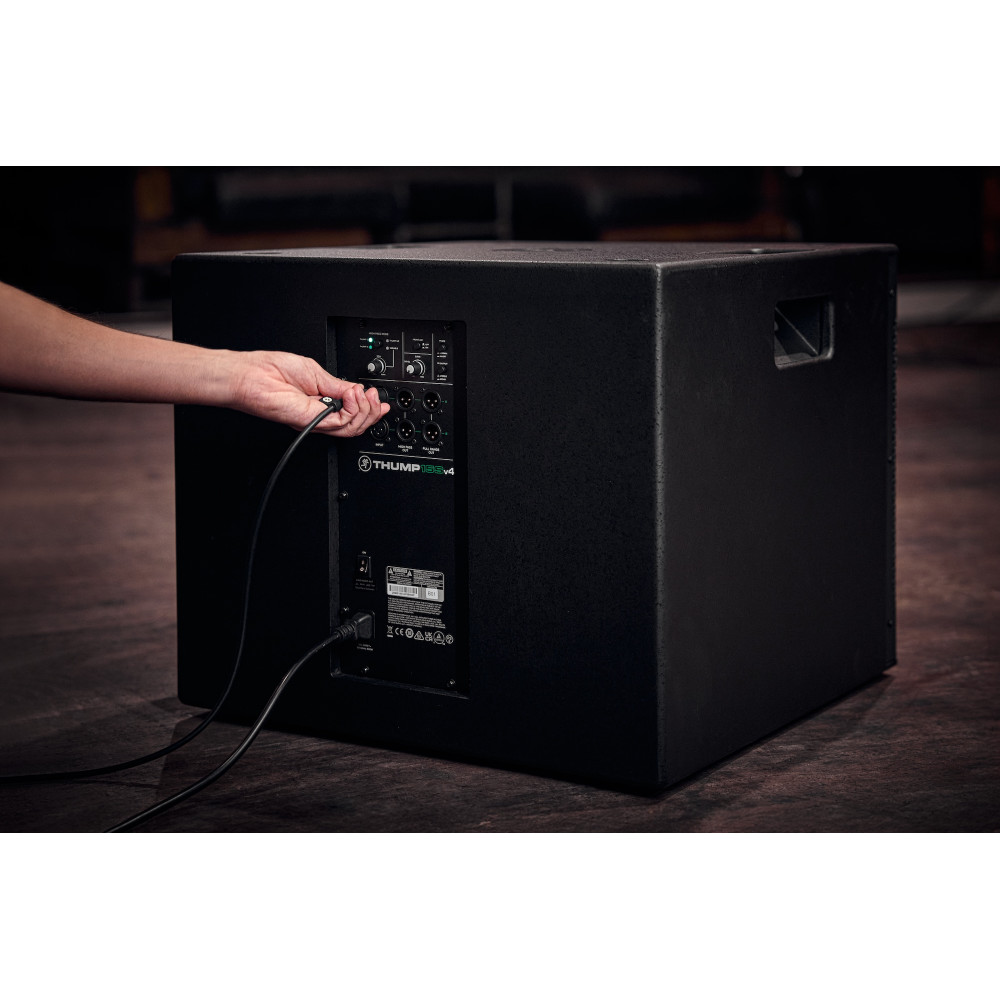

- Stereo XLR inputs: Connect to DJ controller, mixer or other source
- Stereo XLR high-pass outputs: Connect to loudspeakers and select your high pass mode
- Stereo XLR full-range outputs: Chain the full, unaltered signal to the next subwoofer
Essential Subwoofer Features
- Phase invert switch
- Defeatable front LED
- Stereo or mono summing for single or dual subwoofer deployment
- Variable level control (Muted to +6 dB)
- Front LED On/Off
Physical Specs

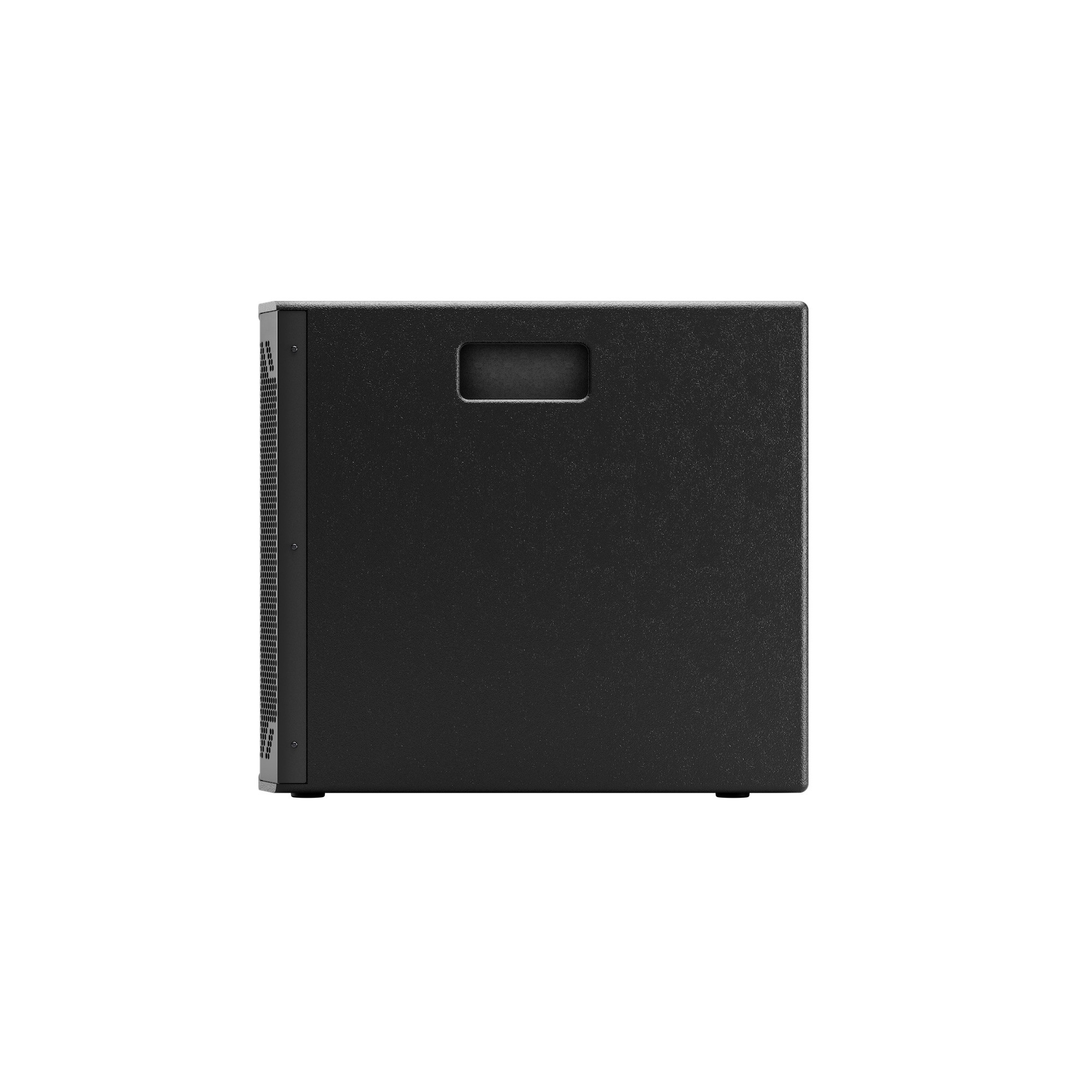

- Built-in handles
- Rugged, modern construction

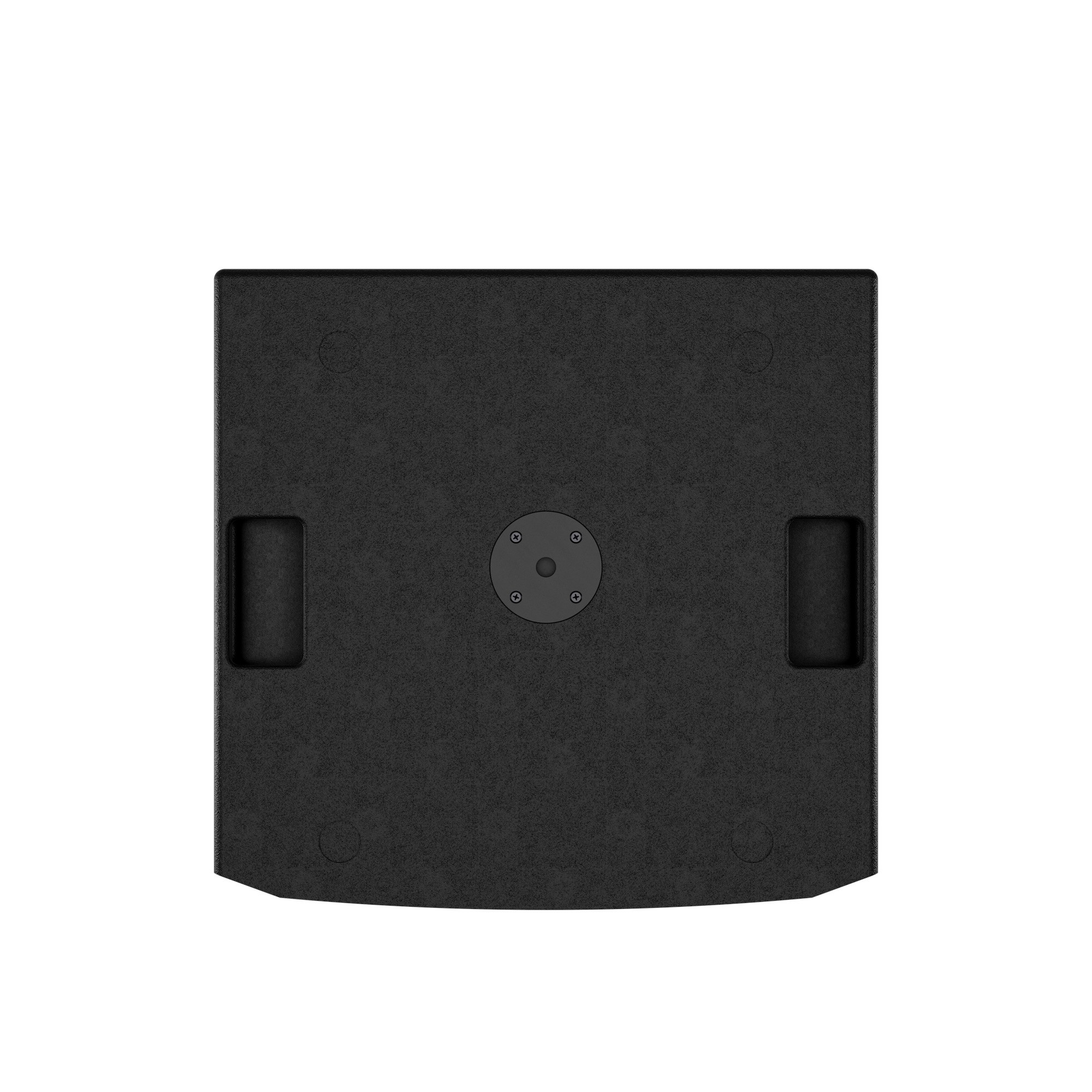

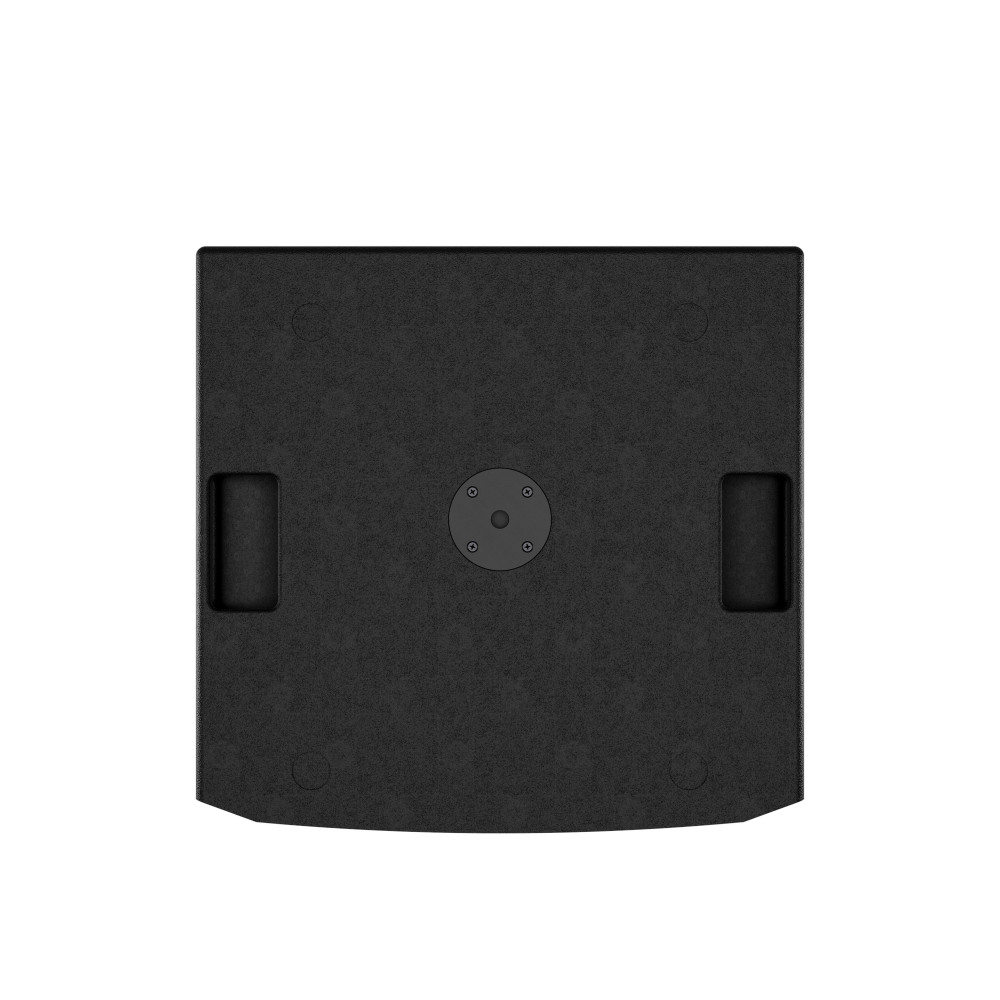

- M20 thread for SPM400 speaker pole (sold separately)
- Height: 21.3 in / 541 mm
- Width: 24.8 in / 630 mm
- Depth: 23.8 in / 605 mm
- Weight: 70.4 lb / 31.9 kg
